Gas Monitoring System

Home > Products > Gas Monitoring System

차량정보 표
Model No.	Computer Monitoring System GAS TRACKING Ver. 5.0
Category	GAS MONITORING SYSTEM

Description

GAS TRACKING Ver. 5.0 is the optimal GAS MONITORING SYSTEM based on Microsoft Windows OS, designed to monitor and control gas leaks in industrial settings.

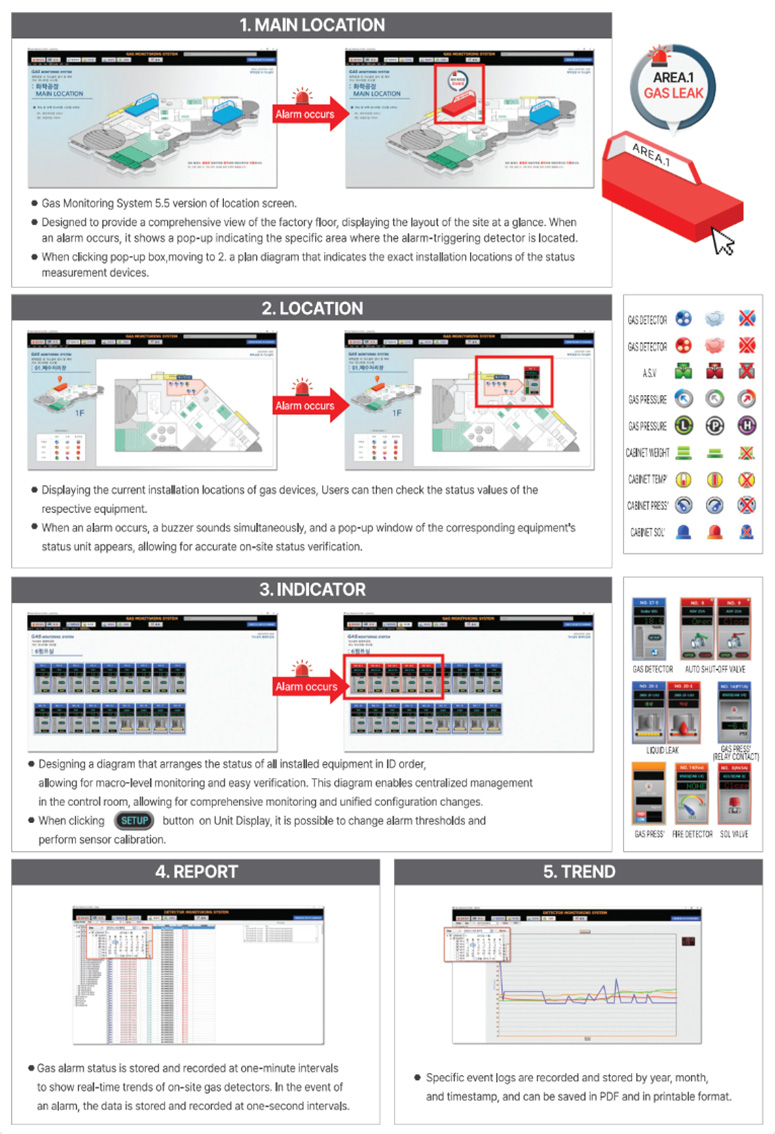

Application of a user-friendly UI to ensure quick user awareness when events occur.
Icon animation functionality for checking communication status and displaying gas alarm, gas blocking, and abnormal gas pressure status.
Reporting and trend analysis functionality, along with data logging for systematic monitoring, anallysis, and storage.

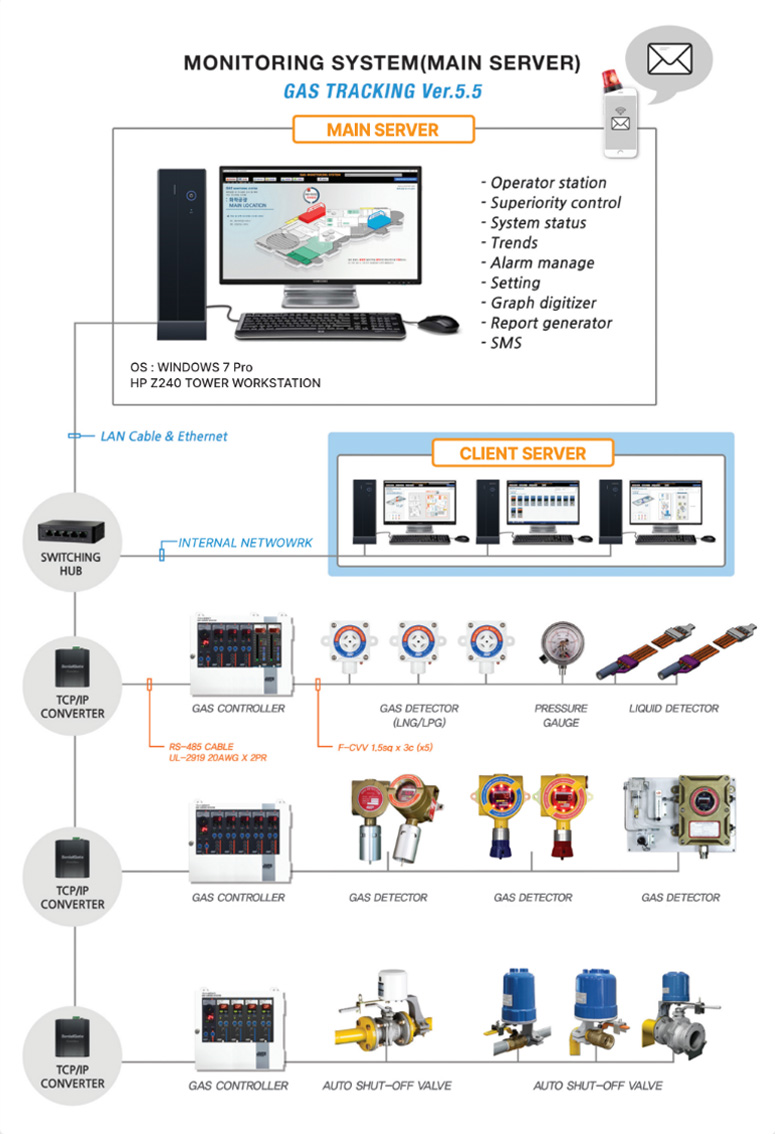

Easily expandable circuitry using Ethernet connection (capable of expanding communication ports to over 265).
Convenient addition, expansion, and deletion using a database editor without the need for additional software, allowing users to easilly make changes at any time.
Performing setup functionality to enable easy icon position modification and password settings.

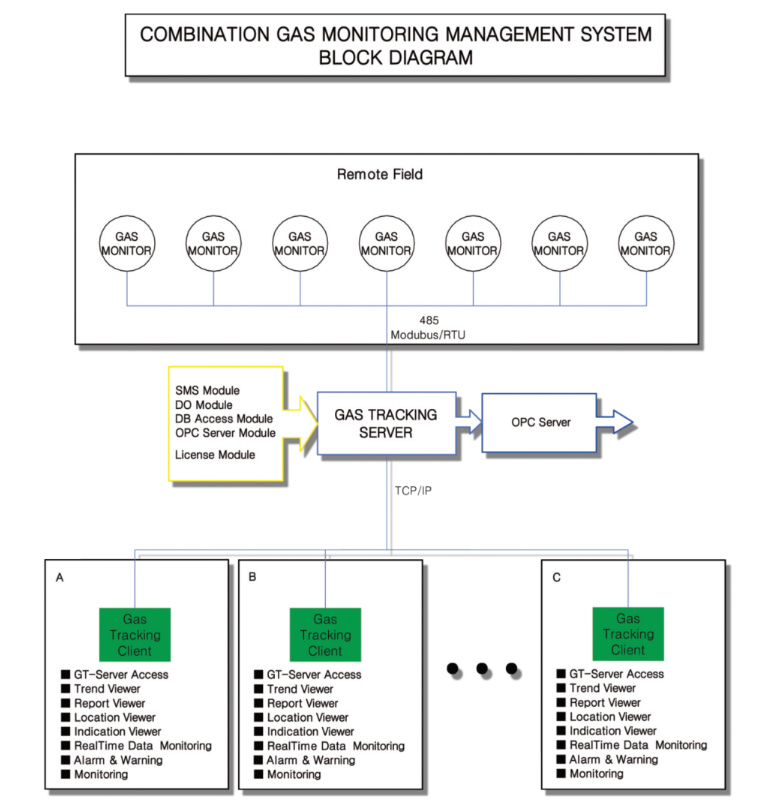

Impllementing a dual control system for convenient expansion, allowing forseparation of server and client for monitoring purposes.

Model No.

GAS TRACKING Ver.5.0

Measuring signal

RS-485

Transmission speed

38,400bps
