AUTO SAMPLING TYPE GAS DETECTOR

차량정보 표
Model No. AUTO SAMPLING TYPE FLAMMABLE, TOXIC, OXYGEN DETECTOR QM-9500D
Category GAS DETECTOR, AUTO SAMPLING TYPE GAS DETECTOR

Description

Description
  • 4~20mA (Transmitter), RS-485 Modbus (OPTION)
  • FND LOCAL DIGITAL DISPLAY
  • MODEL: QM-9500D
Features
  • Continuous detection of ambient gases in areas with potential gas leaks.
  • Quick detection of gas leaks with a high-performance pump(Diaphragm pump) built-in.
  • The first of its kind in Korea, equipped with an automatic humidity & water discharge solenoid valve, which dries moisture caused by water or temperature changes when external air is sucked in, and automatically discharges the sucked water.
  • Field-Bus Network of RS-485 Modbus (Isolated) Serial communication.
  • High intensity LED Warning Flash Lamp.
  • Remote calibration and program setting using a 1:1 communication method via magnetic key or computer monitoring system without opening the cover.
  • Internal pressure explosion-proof.
Specification
Model No.
QM-9500D
Measuring gas
FLAMMABLE GAS (H2, CH4, C2H2, C2H4, Freon etc.)
TOXIC GAS (CO, CL2, NH3, H2S, NO, NO2, CO2 etc.)
02(Oxygen)
Measuring range
0~100%(LEL)-Flammable gas
0~PPM-Toxic gas(Refer to the range for toxic gases)
0~25%(Vol)-Oxygen
Measuring method
Automatic gas sampling
Measuring signal
4~20mA (Transmitter)
Relay Contact (H.HH) or 24V.DC (H.HH)
RS-485 Modbus (OPTION)
Measuring display
4digit FND(LED) Digital, 4LED display(Power, Low, High, Fault), High intensity 6LED
Flash Warning Lighting (16, Color Event)
Application sensor
Catalytic combustion
Electro-chemical
Semiconductor
NDIR (Infrared)
Response time
[Suction line, Standard 15M]
20 secs/90% Scale - Flammable
10 secs/90% Scale - VOC, O2
45 secs/90% Scale - Toxic
Communication transmission speed
38,400 bps
Accuracy
±3%/Full scale - Flammable, VOCs, NDIR
±2%/Full scale - Toxic, Oxygen
Operating temp '/humi'
-20°C ~ +40°C / 90% RH (Non-condensing) (Depends on sensor type) : Detector
-40°C ~ +150°C /99% RH (Non-condensing) : Suction area
Operating power
21~31V.DC / 500mA (Max)
Suction Fllow Rate
0~2,000ml/Min', Max
Suction/ Exhaust
conduit 1/4 inch
Outllet suction water exhaust time
10 seconds / Every hour (Automatic discharge time control depends on field conditions)
Consumption electric power
12W
Cable/Distance
Power & Signal : 1.5sq x 3wire (Shield)/4~20mA Signal, 2,000M
UL2919 1Pair (Power supply 24V.DC)/RS-485 Modbus Signall, 1,000M
Conduit connection cable
3/4(22MM) PF
Mounting type
Wall mounting
Material
Cast Aluminum alloy - Detector
Steel (Powder coating) or SUS - Enclosure(OPTION)
Approval
Ex d IIB+H2 T6 (KOSHA)
Dimension
510(W) × 380(H) × 172(D)
Weight
20.00 Kgs

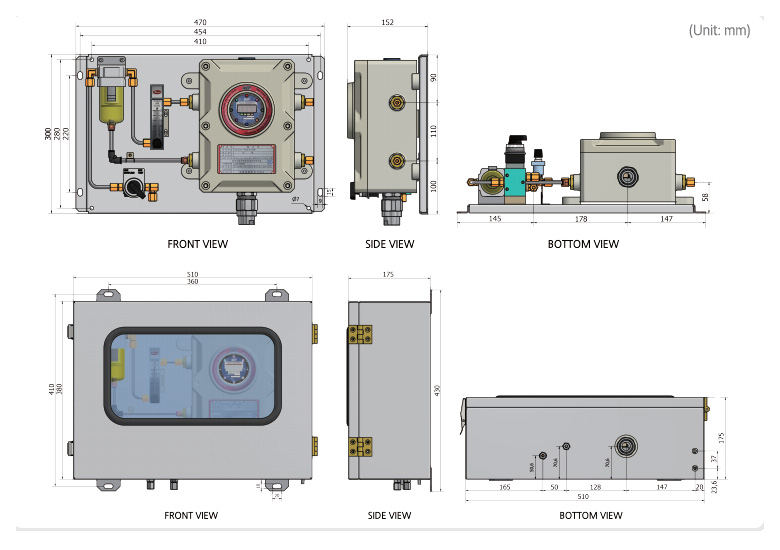

DIMENSION(mm)
